Southern Pacific SD40R 7319 from a Kato SD40 Model

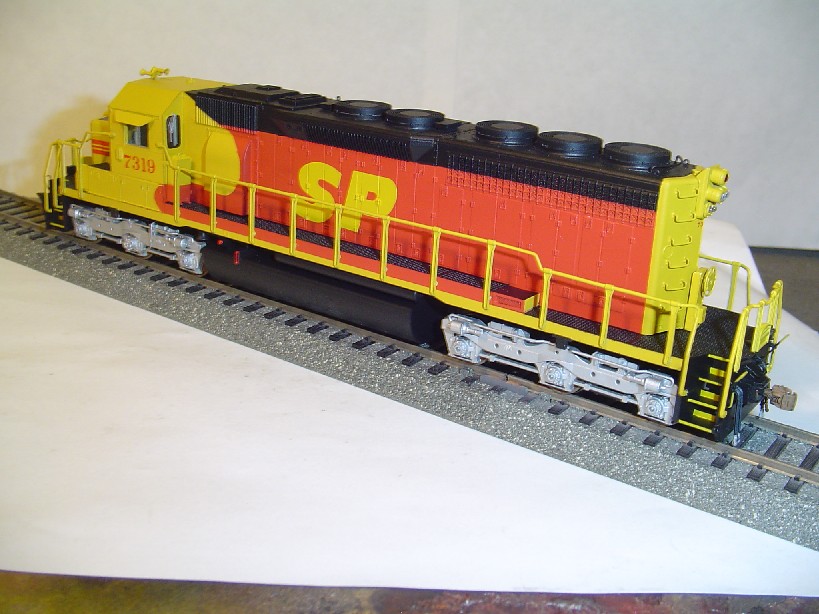

Southern Pacific SD40R Kodachrome from a reworked Kato SD40 model.
Model started out as a Kato SD40. The shell had the nose, fans, and long hood end removed. Pilot faces scraped off and sanded smooth.
From there, Cannon and Company fans, a new 81 inch nose and long hood end were fitted. Pilot faces were rebuilt with Detail Associates coupler cut bars, a new plow on the front,
new skid plate on the rear, holes were drilled for Detail Associates MU hoses. Atlas Dynamic brake T vents were added, a Details West electrical cabinet replaced the stock Kato one. DA eyebolts, A Line grab irons and a rear fan
grab were added. Sunrise Enterprises SP light cluster packages were added. Also, a SP tool box from Sunrise Enterprises was added at the end of the traction motor blower duct and the handrails were modified accordingly.
The subbase was cut up and new subbase sides from both Cannon and Company and Hi Tech Details were added to get the correct SP GRIP battery box doors. A speed recorder was added, and the round sight glass on the fuel tank was
filled in. A new whip antenna was added to the cab, along with a Details West horn. Also, at this time holes were drilled out for Detail Associates windshield wipers.
Everything was abrasivized and washed with hot soapy water and then dried.
The unit was primed with Floquil Primer then Scalecoat II white. Then, Floquil ATSF yellow was sprayed, allowed to dry, then unit was masked and Floquil Scarlet was sprayed. Again, after masking, the black was sprayed.
The sideframes were sprayed Floquil platnium mist. Decals are Microscale. Unit was
semi glossed with half Testor's dullcoat and half Testor's glosscoat mixed with lacquer thinner, assembled and tested.
